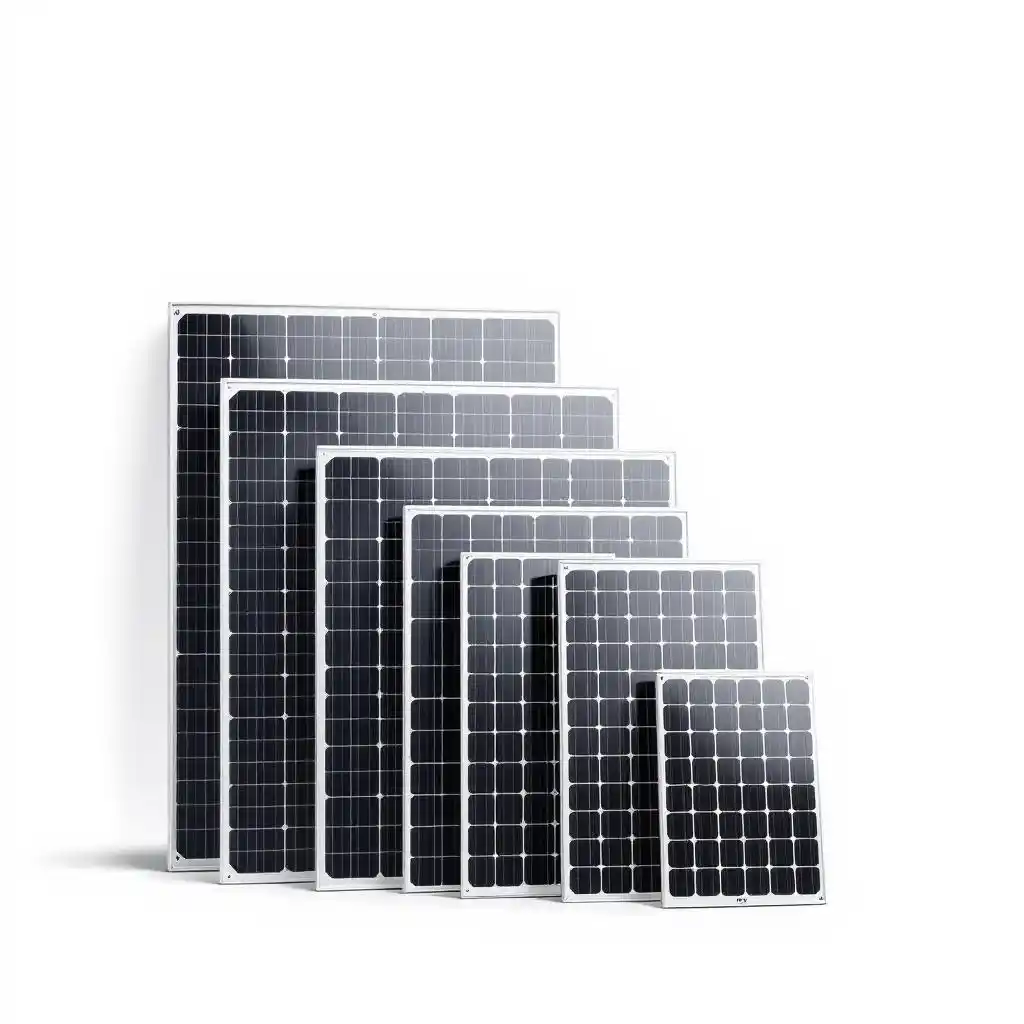

Monocrystalline Aluminum-Frame Solar Panels | Multi-Size Customization (20W–460W)
Built for high efficiency and long outdoor service, our panels combine premium monocrystalline cells with a durable 3.2 mm low-iron tempered glass front and weather-resistant backsheet. With IP68 junction boxes and 2–3 bypass diodes, the modules deliver stable output under shading and harsh environments. From compact 20–100 W units for RVs and cameras to 350–460 W roof modules for balconies and homes, we cover the full range—and support custom sizes, voltages, cables, and labeling.
Key Features
High efficiency cells: PERC or N-type TOPCon optional; module efficiency up to ~21%+ with strong low-light performance.
Rugged build: 3.2 mm tempered glass + TPT backsheet; anodized aluminum frame; wind/snow load ready.
Reliable electrics: IP68 junction box, 2–3 bypass diodes, MC4 connectors; positive power tolerance (0 to +5 W).
Easy installation: Standard mounting holes; compatible with balcony racks, A-frames, and roof rails.
Compliance & warranty: CE/RoHS; IEC 61215/61730 available; typical 10–12-year material warranty.
Typical Applications
Balcony PV, home rooftops, gardens/farms, off-grid kits, telecom/monitoring, street lights/CCTV, RVs and boats, pairing with portable power stations.
Available Power Ratings
20–100 W (devices/RV) | 120–200 W (portable/balcony) | 280–330 W (compact rooftops) | 350–410 W & 430–460 W (mainstream residential/commercial).
Customization Options
Power & dimensions | Cell technology (PERC / N-TOPCon / HJT) | Single-glass or double-glass (bifacial) | Frame color/height | Glass AR options | Cable length & gauge | Connector type (MC4/Anderson) | Labels/packing | Certifications for target market.
Core Electrical Ranges (STC, typical)
50 W: Vmp 18–20 V, Imp 2.5–2.8 A
100 W: Vmp 18–20 V, Imp 5.0–5.6 A
200 W: Vmp 19–21 V, Imp 9.6–10.6 A
330 W: Vmp 31–34 V, Imp 9.8–10.8 A
410 W: Vmp 31–41 V, Imp 10.0–13.0 A
460 W: Vmp ≈41 V, Imp ≈11.2 A
Temperature Coefficient (Pmax): −0.35%/°C (PERC) or ~−0.30%/°C (N-TOPCon).
System Pairing
12 V systems/portable power (100–200 W + MPPT 10–30 A) | 24 V systems (200–400 W×N + MPPT 30–60 A) | Grid-tie balcony/rooftop (350–460 W with micro-inverter/string inverter; ensure Voc margin at lowest ambient temperature).
